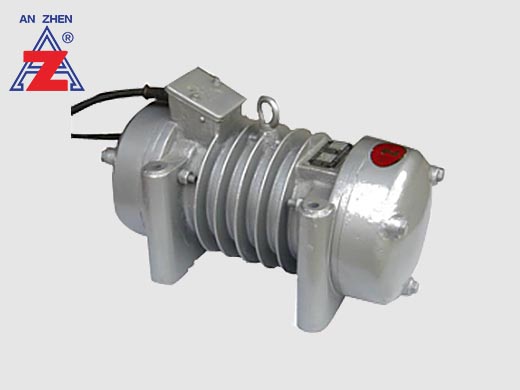

ZF1、ZW5(A)、ZW10(B)、ZW20、ZF150、ZF220、ZJY20(The special order is available on the request)
Mainly used in building, coal, mining, light industry, chemical, cement, railway, port industry .They can also be used as source of vibration equipment.
Tel:+86 0372-2588682; mobile:+86 15716303576
Product Application
Mainly used in building, coal, mining, light industry, chemical, cement, railway, port industry .They can also be used as source of vibration equipment.
Features
High Safety performance.
Light weight, strong vibration force, stable amplitude, easy adjustment of vibrating force, machine shell made from cast iron ,wholly sealed.
We can promise the nameplate power is consistent with the actual power.
Technical Parameter
| Type | Motor capacity(kw) |
Current(A) |
Vibration freq(Hz) |
Exciting force(N) |
Amplitude(mm) |
Total weight（kg） |
| ZF1 | 0.12 | 0.372 | 47 | 500/1000 | 0.6 | 9 |
| ZW5 | 0.8 | 1.74 | 48 | 4200 | 1.5 | 35 |
| ZW5A | 0.8 | 2.45 | 48 | 3000 | 1.5 | 35 |
| ZW10 | 1.1 | 2.45 | 48 | 9200 | 2.3 | 44 |
| ZW10B | 1.1 | 2.45 | 48 | 6700 | 2.3 | 44 |
| ZW20 | 3 | 6.09 | 48 | 15000 | 1.8 | 90 |
| ZF150 | 1.5 | 3 | 48 | 9200 | 2.2 | 46 |
| ZF220 | 2.2 | 4.6 | 48 | 11000 | 2 | 55 |
| ZJY20 | 2 | 4.6 | 48 | 14000 | 2 | 83 |
