ZN50、ZN70G、ZN70T(The special order is available on the request)
Vibrators intended for compaction of concrete when it is placed in the monolithic structures with varying degrees of reinforcement, as well as in the manufacture of concrete and precast concrete products for construction.
Tel:+86 0372-2588682; mobile:+86 15716303576
Product Application
Vibrators intended for compaction of concrete when it is placed in the monolithic structures with varying degrees of reinforcement, as well as in the manufacture of concrete and precast concrete products for construction.
Features

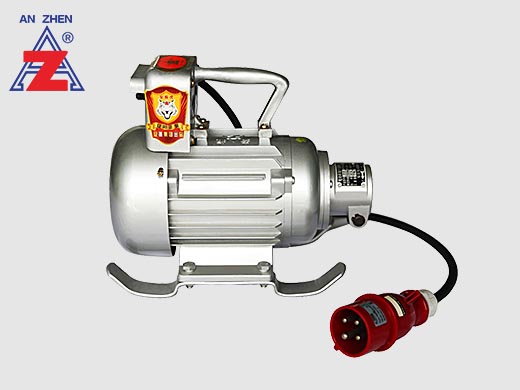

The motor is special with light weight and easy carry.It also has a unique anti-reverse device with push button mode.
Easy to operate and high safety of poker concrete vibrator.
We can promise the nameplate power is consistent with the actual power.
Technical Parameter
| Type | Vibration freq（Hz） | Max amplituded vibration（mm） | Input power（kw） | Revolution（r/mm） | Power supply | Total weight（kg） |
| ZN50 | 200 | 1.15 | 1.3 | 2850 | 3 phases 50Hz 380V |
29 |
| ZN70G | 200 | 1.35 | 1.8 | 2850 | 41 | |
| ZN70T | 200 | 1.35 | 2.68 | 2850 | 43 |
