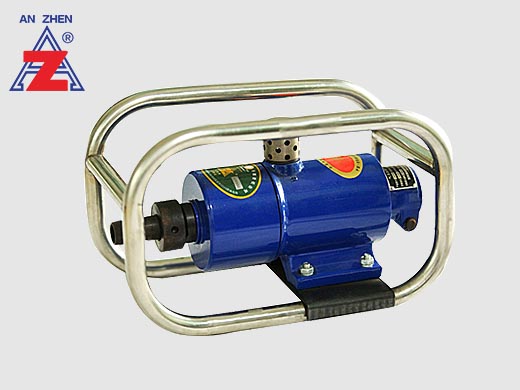

Poker Vibrator Driven with Pneuma Motor

  • Type:

    ZNF50(The special order is available on the request)

  • Product Application:

    Vibrators intended for compaction of concrete when it is placed in the monolithic structures with varying degrees of reinforcement, as well as in the manufacture of concrete and precast concrete products for construction.

  • Contact:

    Tel:+86 0372-2588682; mobile:+86 15716303576

Share with:

Product Application

Vibrators intended for compaction of concrete when it is placed in the monolithic structures with varying degrees of reinforcement, as well as in the manufacture of concrete and precast concrete products for construction.

Features

  • 01

    The motor is special with light weight and easy carry.It also has a unique anti-reverse device with push button mode.

  • 02

    Easy to operate and high safety of poker concrete vibrator.

  • 03

    We can promise the nameplate power is consistent with the actual power.

  • 04

    Patented product.

Technical Parameter

Product name

Type

Rated revolution Air pressure available Vibration freq (Hz)
Loaded air consumption Inner dia.of the inlet pipe Amplitude (mm)
Unit Price(¥) Unit Price
(USD)
POKER VIBRA TOR DRIVEN WITH PNEUMA MOTOR ZNF50 3000r/min 0.4-0.5MPa 200 1.5-1.7m³/min 25mm 1.15mm 575 US$83.3
